Understanding NTC Thermistors.

An NTC thermistor is a temperature-sensitive resistor made of sintered semiconductor ceramic. Its resistance decreases as temperature increases, following a predictable resistance-temperature (R-T) curve. Engineers measure this resistance using minimal excitation current to ensure a true zero-power reading without self-heating. This stable relationship between temperature and resistance is the foundation for NTC thermistors in supporting measurement, compensation, control, and protection in electronic systems.

How NTC Thermistors Work?

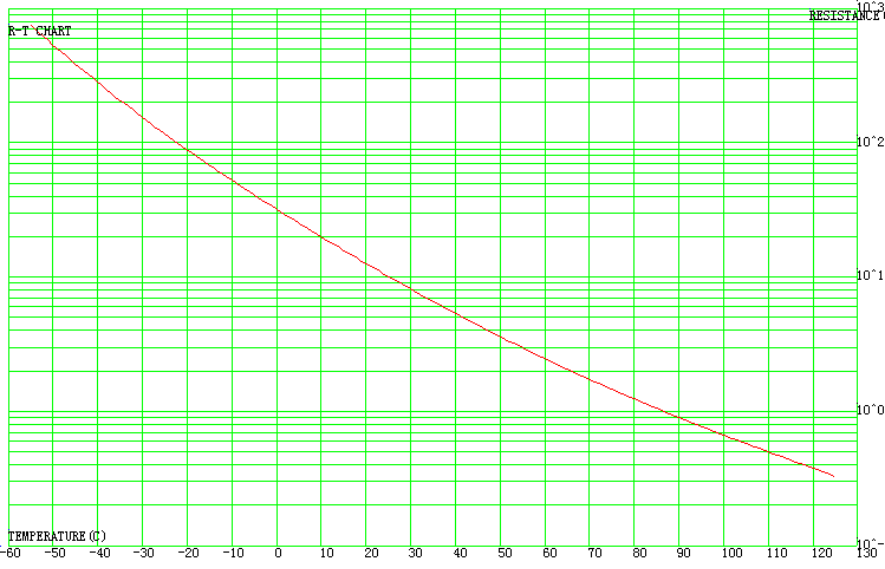

The characteristics of an NTC thermistor depend on its ceramic composition and a material constant called the β value, which represents the steepness of the change in resistance with absolute temperature. For applications requiring high-precision measurements over a wide temperature range, an R-T curve is typically used to convert resistance to temperature. These characteristics make NTC thermistors efficient, compact, and economical continuous thermal monitoring elements.

Applications of NTC Thermistors.

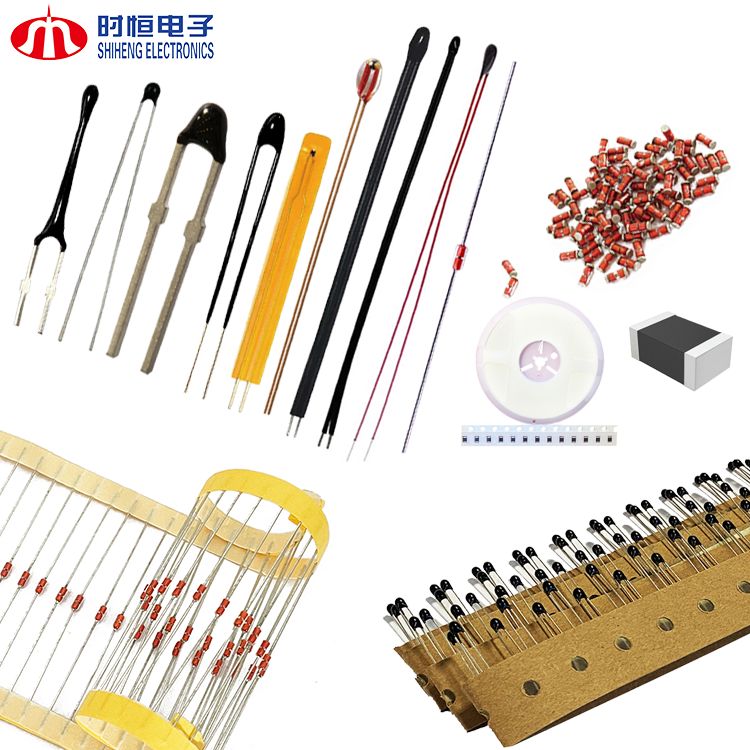

NTC thermistors are widely used in HVAC equipment, home appliances, electric vehicle battery systems, robotics, medical devices, and industrial control systems. They can be used as compensation components in sensing elements, oscillators, and integrated circuit modules, as well as inrush current limiters in power supplies and chargers. To adapt to different environments, NTC thermistors are available in various package forms, including glass packages, epoxy coatings, SMD surfaces, and probe assemblies, with probe assemblies also including metal housings, ring terminals, and threaded connection designs.

Key Factors in Thermistor Selection.

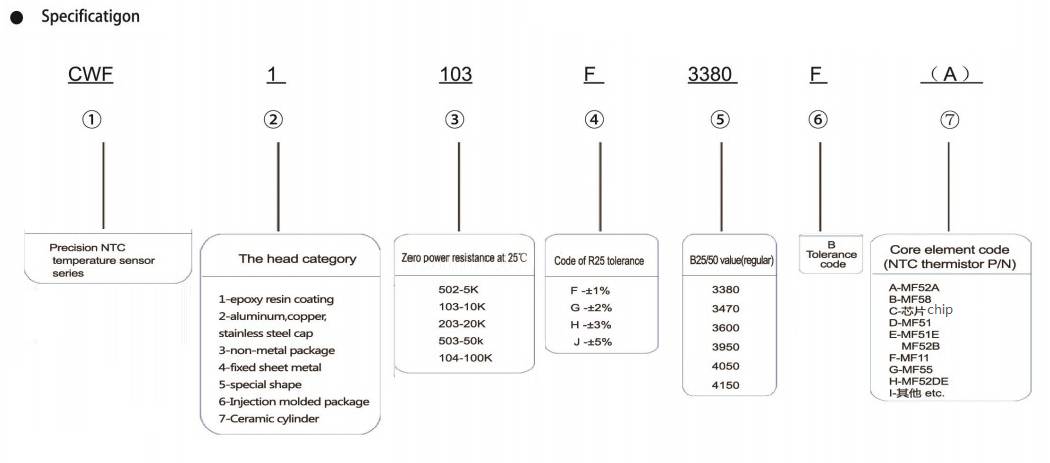

Selecting a suitable NTC thermistor first requires determining the target resistance value (R25) at 25°C, the required β value, tolerance, and long-term stability requirements. For probe-type thermistors, the housing material and insulation properties determine their mechanical strength and thermal response. For inrush current limiters, engineers consider low-temperature resistance, steady-state current capability, surge energy handling capability, and chip diameter, as these factors determine their suppression performance and long-term durability. A well-matched thermistor minimizes design risk and ensures consistent field performance.

Why NTC Thermistors Remain Crucial?

As modern electronics evolve towards higher densities and tighter thermal margins, the demand for accurate, stable, and cost-effective temperature feedback is increasing. NTC thermistors offer advantages such as high sensitivity, predictable curves, long-term repeatability, and ease of integration, making them one of the most practical solutions in the field of thermal sensing and protection.

Shiheng Electronics provides sensing thermistors, surge current limiting components, compensation thermistors, and custom probe assemblies. These products are designed to achieve stable R-T characteristics and consistent quality, supporting reliable performance in power electronics, industrial applications, robotics, electric vehicle systems, and consumer electronics.
